12 Bolt CHEVY
![]() |
![]() |
![]() |
L-R

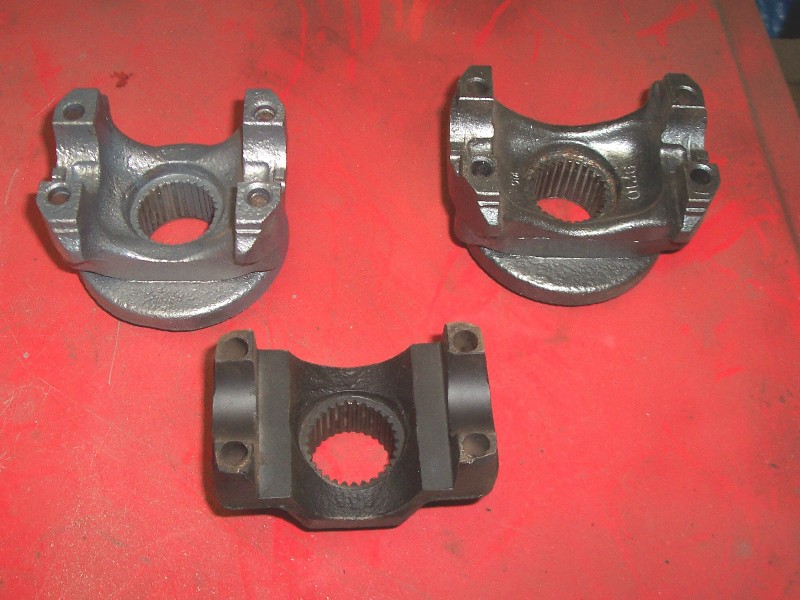

(Small 1310) (1330 B.O.P.) (Large 1330 |

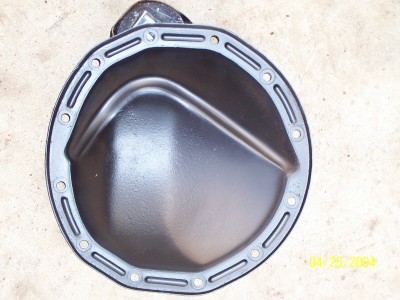

12 bolt chevy cover | C-clip axle retention |
Ring Gear Diameter | 8.875 CHEVY |
Cover Bolt Count | 12 |
Ring Gear Bolt Count | 12 |
Ring Gear Bolt Size | 3/8 RIGHT hand thread |
Axle Spline | 30 C-CLIP axle 45 degree spline |
Pinion Spline | 30 |
Yoke Style | U Bolt & Nut EARLY and B O P Canadian cars STRAP & BOLT LATE Universal Joint retention (reference picture) |
Pinion Diameter | 1.625 |

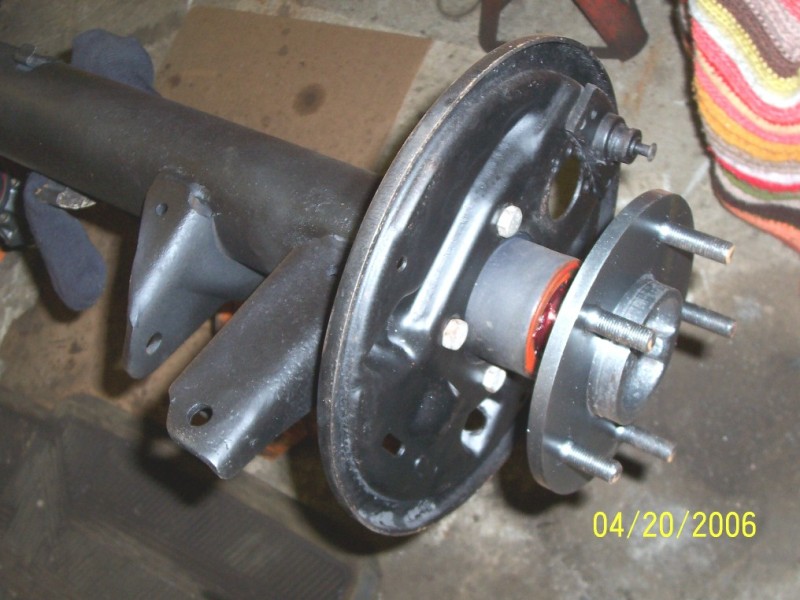

Axle Shaft Diameter | 1.400 torrington bearing and seal c-clip retention |
Supported Cars
Car | Year |
Camaro / Trans Am / FireBird |
67-70 |
Monte Carlo / Chevelle / Grand Prix / Malibu / |
65-72 |
Impala / Caprice / Wagon | 65-70 |
Nova / Apollo / Ventura | 65-71 |
Skylark / Cutlas / GTO CANADIAN |
65-72 |
Rebuild Kit
Part | Part Number |
Carrier Bearing | LM603049 |
Carrier Bearing (Race) | LM603012 |
Inner Pinion Bearing | M802048 |
Inner Pinion Bearing (Race) | M802011 |
Outer Pinion Bearing | M88048 |
Outer Pinion Bearing (Race) | M88010 |
Pinion Seal | 8460N |
Mega Axle Bearing Kit
Part | Part Number |
Axle Bearing | 5707 |
Axle seal | 8660S |
